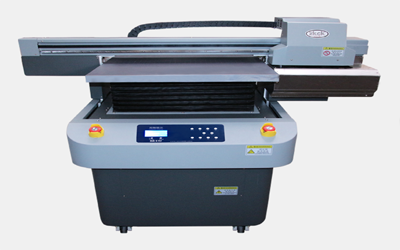

ZKCK-SMT Small UV Flatbed printer Specification (one)
1. Features
- High Quality UV Flatbed Printer
- High accuracy double rail to make sure motion accuracy.
- High accuracy double rail to make sure motion accuracy.
- High Quality UV Flatbed Printer
- High accuracy double rail to make sure motion accuracy.
- High accuracy double rail to make sure motion accuracy.
2. Specifications
Model
ZK-SMT6090(24*35”=2*3feet)
Print size
600*900mm
Print-head type
EPSON DX09/ DX07 &RICOH GH2220(Optional)
Numbers of heads
1-2-3-4PCS
printing accuracy (Dots Per Inch)
360*360dpi;600*600dpi;600*900dpi;600*1200dpi;900*1200dpi;
1200*1200dpi;900*1800dpi;1000 x 1200 dpi;1440*1440dpi
Print Speed
2-3-4heads
Media type
Usage to any indoor, outdoor rigid and flexible décor media
Media thickness
100-150mm(can customize)
Media Weight
25KG (Platform loading)
Ink type
Environmental friendly UV curing ink (VOC free)
Ink color
C, M, Y, K, W, V`(gloss ink, Varnish)
Image formats
Adobe Postscript Level 3,PDF,JPEG,TIFF,EPS,AI
Power Supply
AC220V (±10%), Single phase, 50 / 60 Hz/4KW
RIP Software
Photo-print, color-gate, Ultra-print
Machine Weight
NET.200KG/GRS.350KG
Machine Size(mm)
1450*1380*1250mm
Package Size(mm)
1570*1560*1460mm
Main spare parts configurations Reference picture
Fixture/Rotary attachment
automatic move control system with printing head
Aviation aluminum honeycomb hard anodized sectional vacuum platform
holistic steel structure
automatic clean system
double screws
automatic ink channel control system
LeadShine servo motor
Germany IGUS chain
ink box and automatic white mixing system
lift platform
LED Lamp
LED water chiller
RICOH GH2220/
EPSON head xp600=DX09/DX07
